Lynx Platforms: Something for every workflow

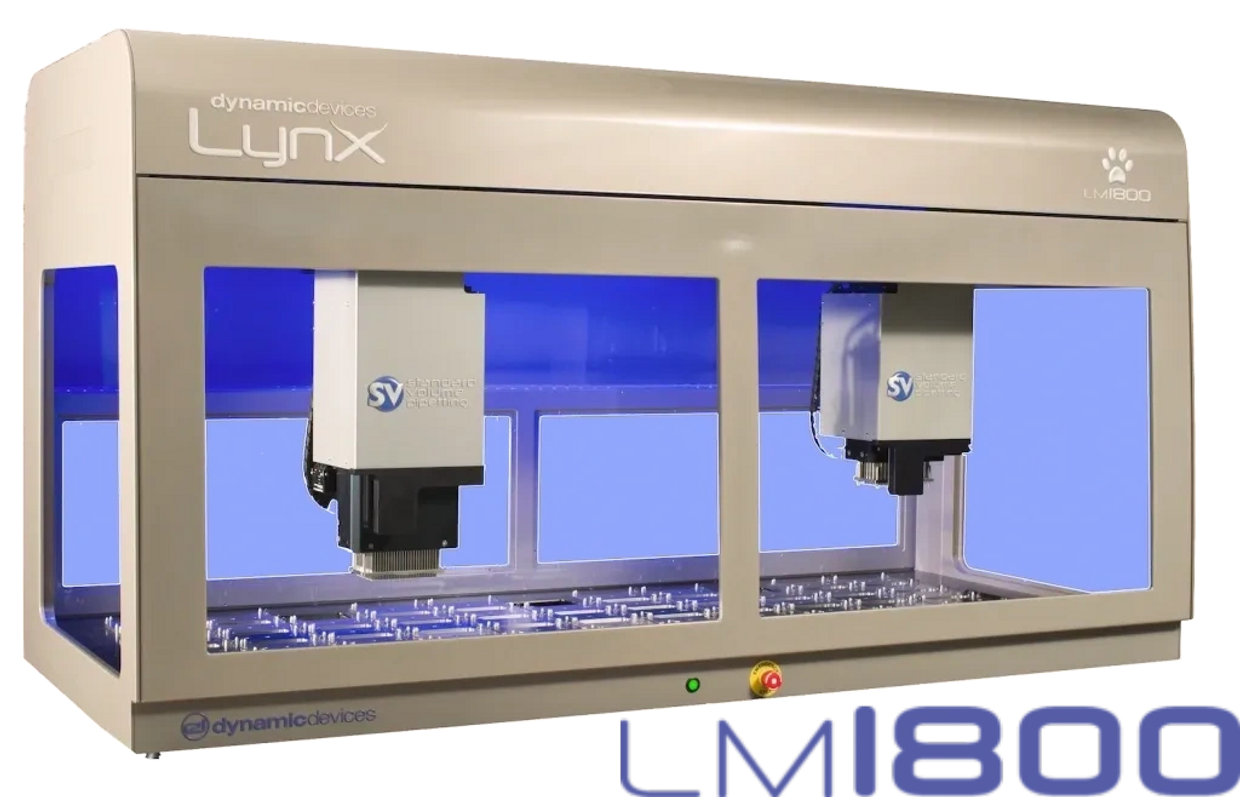

The largest of our platforms for high capacity walk away times.

The Lynx LM1800 offers 1800 mm of X-axis travel while requiring only 75” of bench space.

60-66 microplate position capacity with pipetting access to 42 common positions in a dual arm system

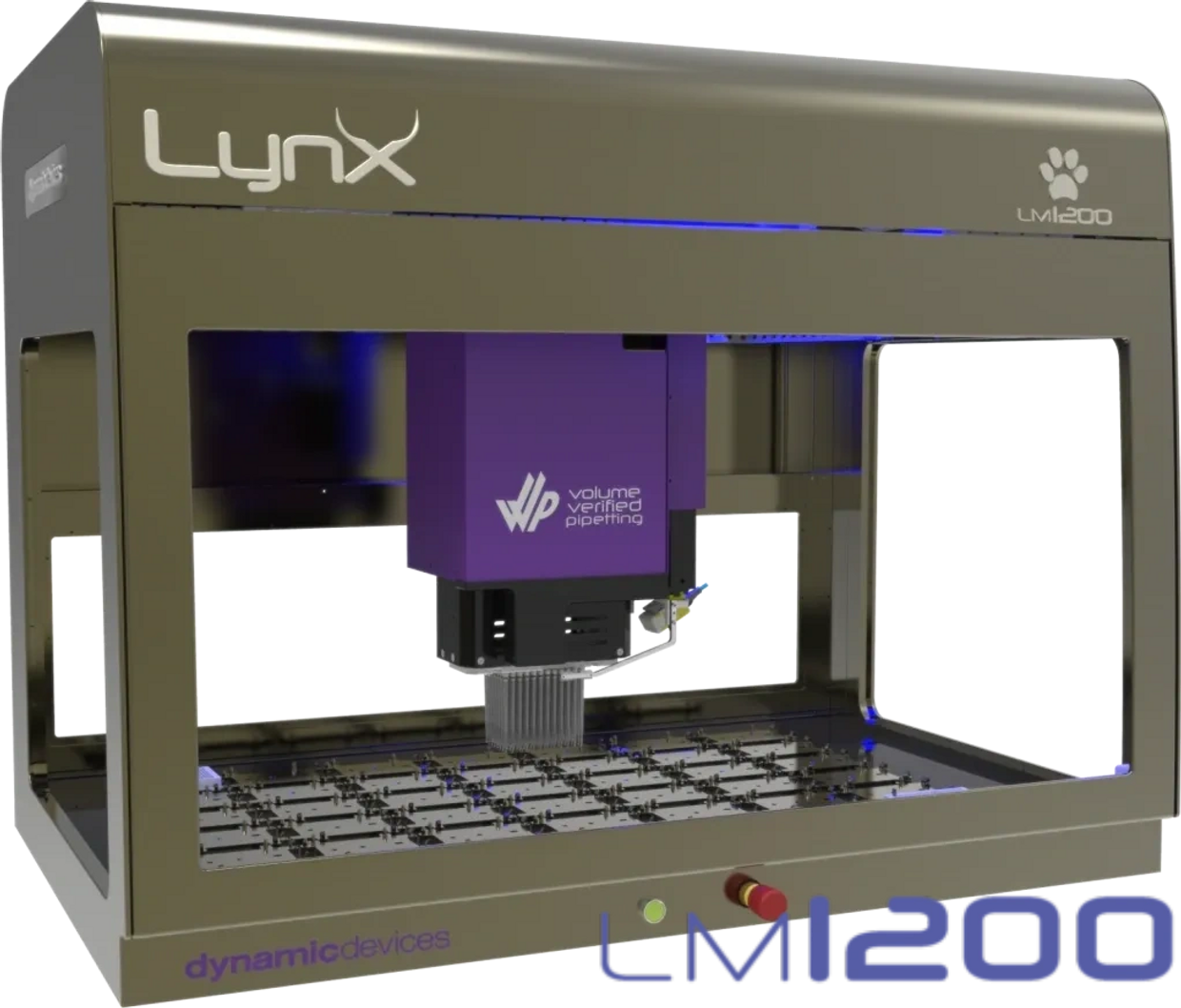

The medium capacity workstation for fully automated workflows.

The Lynx LM1200 offers 1200 mm of X-axis travel while requiring only 52” of bench space. 42 microplate position capacity with pipetting access up to 18 common positions depending on the arm configuration.

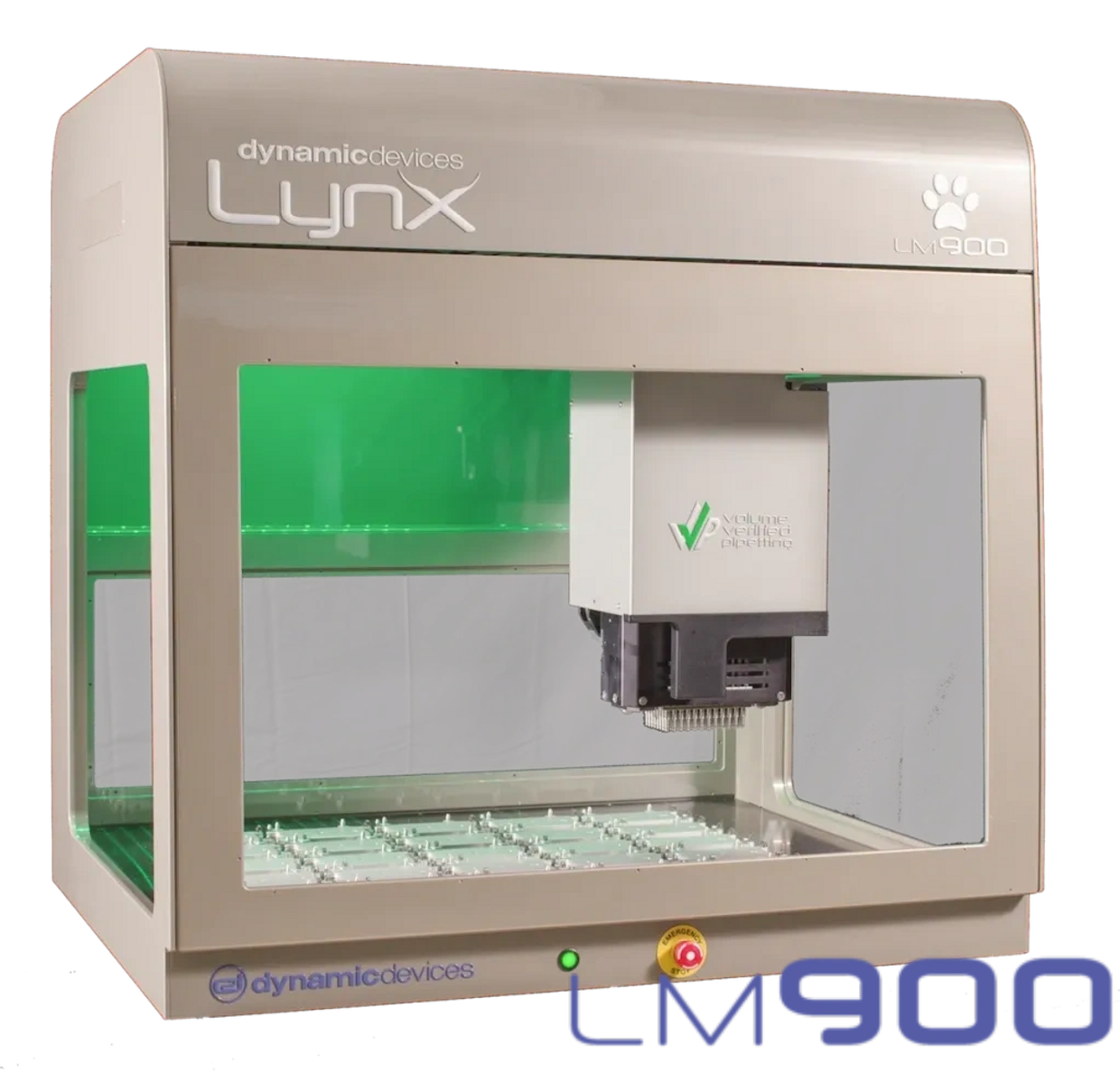

Our most popular size unit for lower capacity workflows, offering 30 deck positions in only 3 feet of bench space.

The Lynx LM900 offers 900 mm of X-axis travel while requiring only 40” of bench space. 30 microplate position capacity with pipetting access to 18 common positions for a dual arm system.

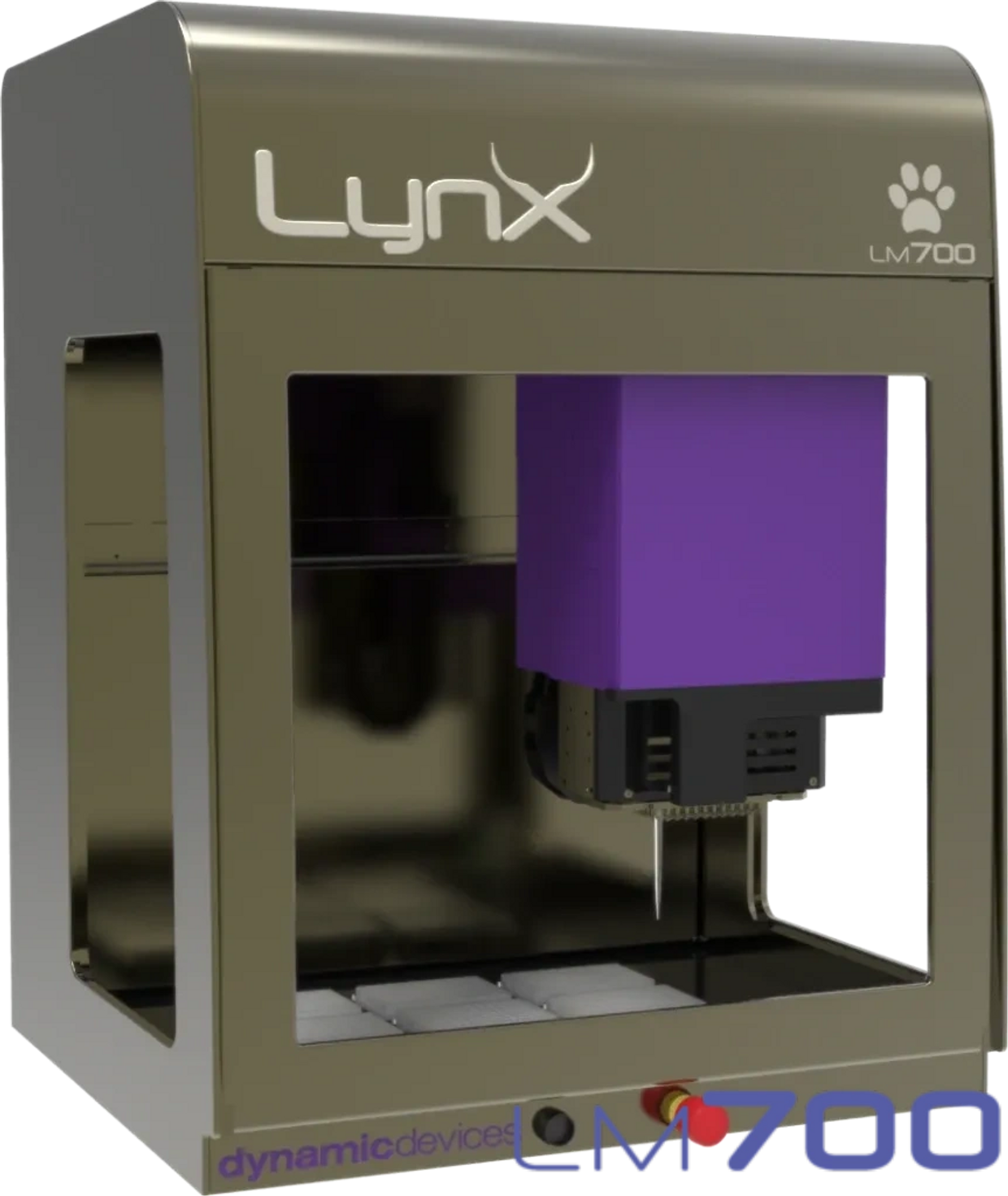

The compact liquid handling platform, the LM700 offers a small footprint and exclusively uses ST Pipetting Tools.

The Lynx LM700 offers 700 mm of X-axis travel while requiring only 28” of bench space. 12 microplate position capacity with pipetting access to all positions. Single arm system only. Largest tip size = 300 μL.

Dual side access for external robot integration and full manual access, offering the 96/f8 VVP Pipetting Tools & 96/384 ST Pipetting Tools.

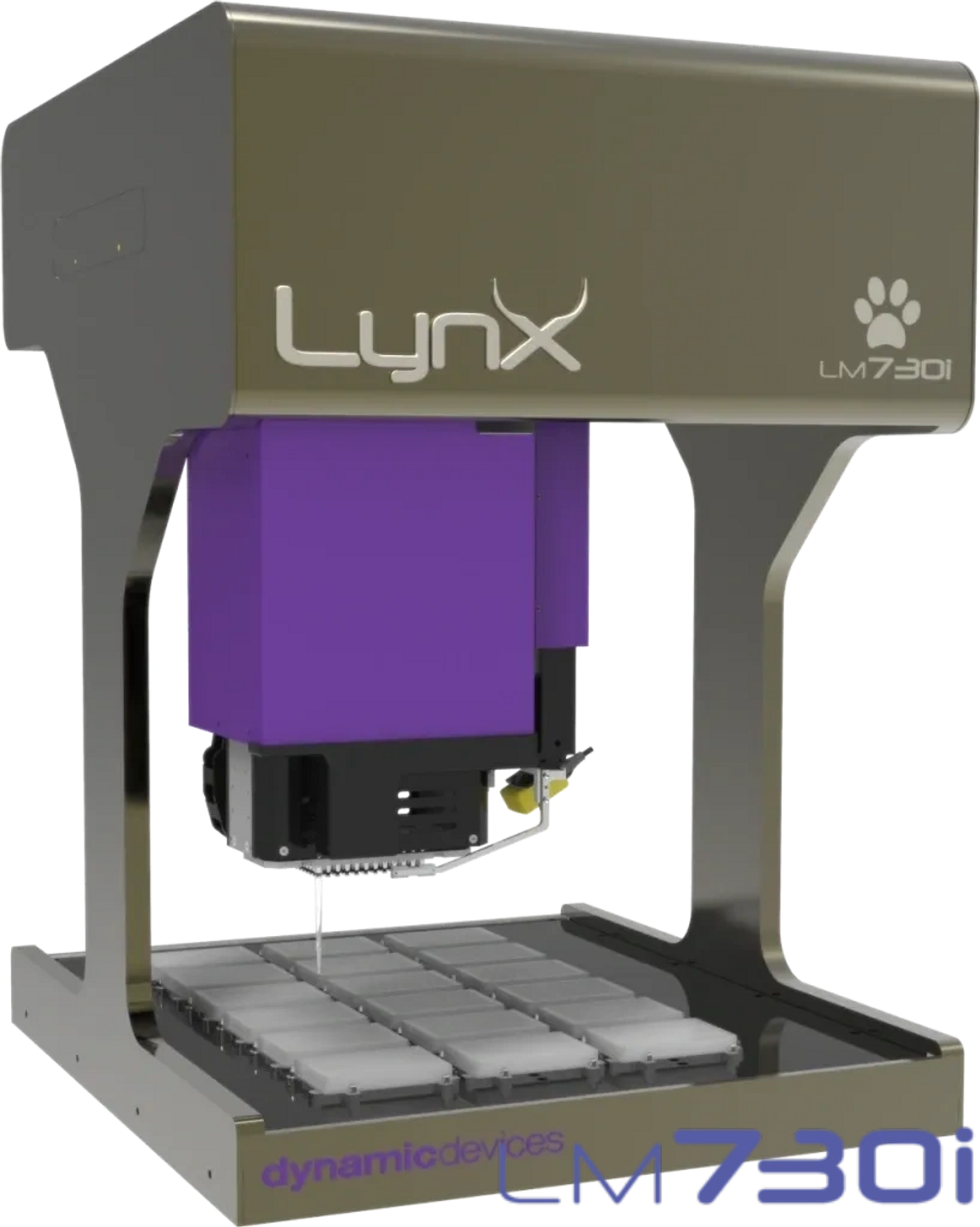

Designed for complex integration projects, the LM730i open architecture frame provides an external gripping robot access to 9-12 on-deck positions.

With a total of 18 positions, the rear positions may be used to hold wash stations, reagent reservoirs, disposable tip racks or other labware/modules.
